Quick Details

  • Place of Origin: Shanxi, China (Mainland)
  • Brand Name: GKGD
  • Model Number: P1.667
  • Usage: Indoor
  • Tube Chip Color: Full Color
  • Display Function: Animation
  • Pixels: 240*180 dots/pcs
  • Screen Dimension: Customized
  • Product name: Small pitch led screen
  • Pixel pitch: 1.667mm
  • Driving mode: 1/30 scan constant current
  • LED type: 3 IN 1 black SMD1010
  • Module size: 200*300mm
  • Cabinet size: W4010*h300
  • Cabinet weight: 5kg/cabinet
  • Cabinet material: Die-casting Magnesium Alloy
  • Ingress Protection: Front/Rear IP43
  • Brightness: ≥800 cd/㎡

Packaging & Delivery

Packaging Details Packaging: wooden case, flight case or according to customer's requirement
Delivery Time: 7-14 days
Delivery Time Shipped in 14 days after payment

GKGD HD small pixel led full color caninet P1.667

Product Description


Parameter  Value
Product ModelP1.667 indoor full color display
Pixel Pitch1.667mm
Driving Mode1/30 scan constant current
Pixel Configuration1R1G1B
LED Type3-in-1 black SMD1010
Module Size200×300mm
Cabinet Size400mm×H300mm
Cabinet Weight5kgs
MaterialDie-casting magnesium alloy
Ingress ProtectionFront/Rear IP43
InterfaceSelf defind 20P
Pixel Density360000 dots/m²
Viewing AngleH≥120° V≥120°
Input Voltage220VAC±15%
Max./Avg. Power Comsumption1056/288 W/m²
Brightness≥800 cd/m²
Brightness Conformity>95%
Video Frame Rate    60 frames/s
Refresh Rate≥3000Hz
Gray Level14-16 bits
Recommended Viewing Distance≥2m
Decay Rate≤5%/year
Defective Dots Rate<0.0001 (LED industry standard<0.0003)
MTBF≥100000 hours
Lifespan≥100000 hours
Control WayComputer, Video-synchronous, Real-time, Off-line, Wireless, Internet etc.
Input Signal Format (with video processer)AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP etc.
Protective FunctionOver Heat/Over Load/Power Down/Power Leakage/Lightning Protection etc.
Operating Temperature/Humidity  -10℃~+40℃/10-80% no Condensation
Storage Temperature/Humidity  -20℃~+60℃/10-85% no Condensation
• Small pixel pitch series, ultra high definition LED display, the high resolution brings delicate display effect.
• Wide color range, excellent color uniformity, no rainbow effect, broadcasting strong stability.

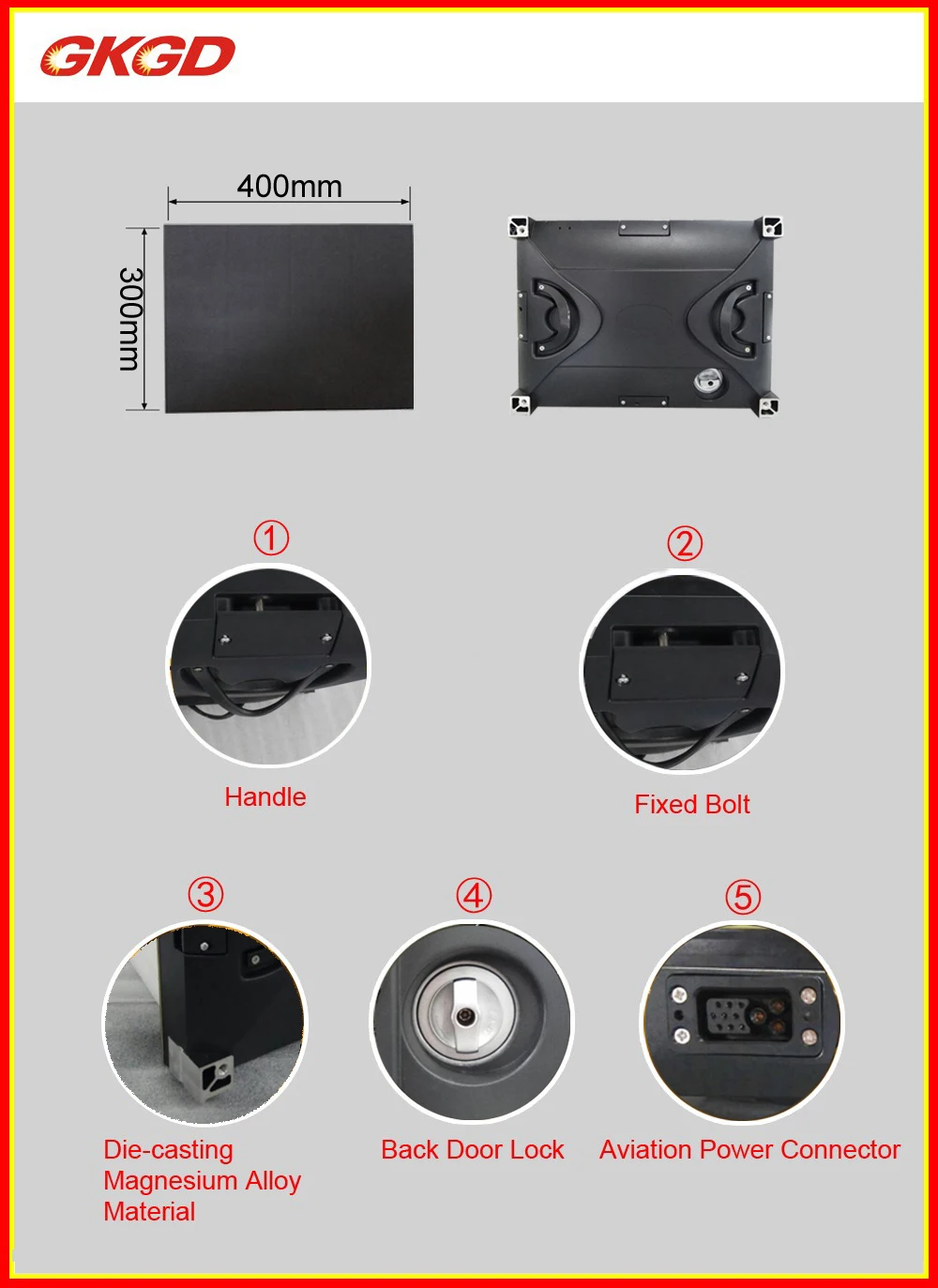

• Die-castting magnesium alloy cabinet, seamless, bezel-free, size-free splicing with adjusting accuracy 0.01mm.
• Metal cooling structure, magnesium alloy material ensures perfect heat dissipation, no noise and no fan.
• Perfect for indoor rental and fixed application, ultra light and thin, dual handles and quick lock desing, easy on-site installation.
Packaging & Shipping

Packaging:  Wooden case, flight case or as customer's requirement

Delivery Time:7-14days

Shipping: Sea transportation / Air transportation / EMS / FedEx Express / DHL Express



Certifications: CE/ROHS/CCC/CQC

Company Information
Shanxi High-tech Huaye Electronic Group Co., Ltd. (GKGD in brief) was established in 2010 with total investment of RMB 3.65 billion. It has 10 subsidiaries and more than 3500 employees. GKGD Group focuses on LED whole supply-chain ranging from sapphire substrate, LED epitaxial wafer and chip process, packaging, to LED applications such as lighting, screen/display and electronic white board. The group takes its place in the front ranks of LED industry in China and gradually has the characteristics of clustering upon the base of investment, technology, equipment and production scale.
The GKGD Group has outstanding strengths: firstly, it has built a complete and integrated LED supply-chain which enables its great ability in cost reduction, especially for LED application products. The group owns lots of core patents. Till now, 152 patents have been registered and still 74 in applying. The Group recruits more than 130 experienced engineers. It also emphasizes "Enterprise-University-Academy" cooperation. There are lots of R&D projects undertaking between the Group and the Chinese Academy of Sciences as well as universities in Taiwan and Shanxi.
"Honesty", "Tolerance", "Gratitude" and "Responsibility" are GKGD Group's philosophy. It commits to providing professional service to its distinguished customers worldwide. All staffs in the Group make every possible effort to meet customers' requirement and ensure mutual benefit for long term. With the support and trust of customers, the Group is going further and better. In return, GKGD is to contribute the society with its green and energy-saving products.
